- CPU: Allwinner H2+/H3, Quad-core Cortex-A7
- 512MB DDR 3 SDRAM
- WiFi & BT onboard
- Mini HDMI
- 40 Pin Raspberry Pi-compatible GPIO, including UART, SPI, I2C, etc
- Same size as Raspberry Pi Zero W

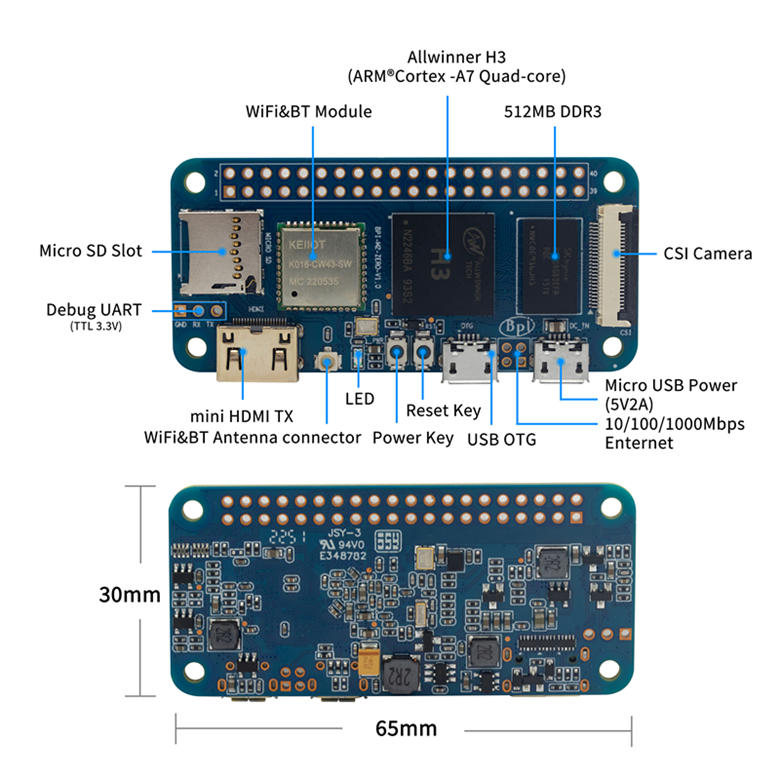

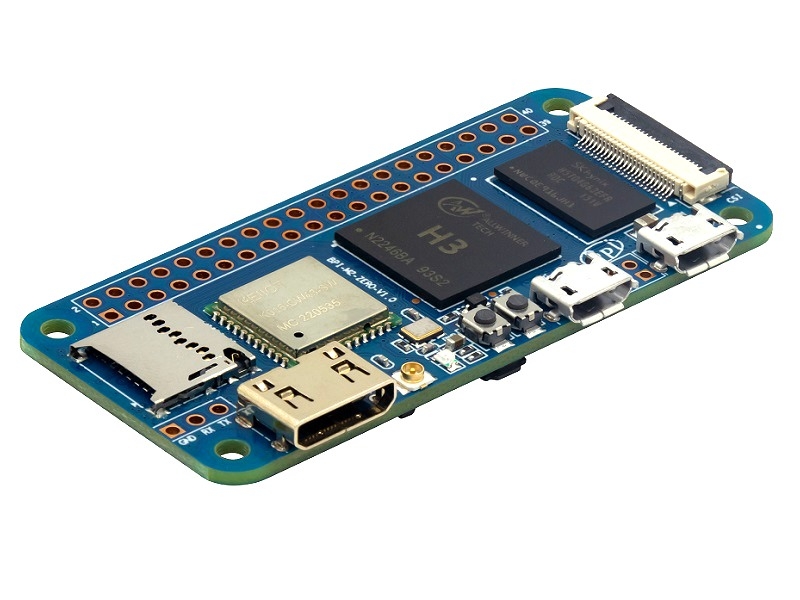

The Banana Pi M2 Zero is an ultra compact single board computer which
measures only 60mm*30mm. Its external interfaces are the same as the
Raspberry Pi Zero W, and it will fit almost all cases and accessories
for the Zero W. It uses the quad-core Cortex A7 Allwinner H3(option H2+
H5) processor, with 512MB RAM. It‘s ideal for light-weight systems and
space-limited applications. Like other members of the Banana Pi family,
it supports both Linux and Android operating systems.
https://docs.banana-pi.org/en/BPI-M2_Zero/BananaPi_BPI-M2_Zero
Hardware Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W
| Module |
Banana Pi BPI-P2 Zero |
Banana Pi BPI-M2 Zero |
Raspberry Pi Zero W |
| CPU |
H3 Quad-core Cortex-A7 H265/HEVC 1080P |
H3 Quad-core Cortex-A7 H265/HEVC 1080P |
Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core |
| GPU |
Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 |
Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 |
VideoCore IV |
| Memory (SDRAM) |
512M DDR3(shared with GPU) |
512M DDR3(shared with GPU) |
512 MB DDR2 |
| Onboard Storage |
TF card (Max. 64GB) |
TF card (Max. 64GB) |
TF card (Max. 64GB) |
| Onboard Network |
100M LAN |
NOPE (but can extension with PIN define) |
NOPE |
| PoE power |
PoE function support |
NOPE |
NOPE |
| Onboard flash |
8G eMMC |
NOPE |
NOPE |
| Onboard WIFI |
SDIO AP6212（option AP6181、AP6335） |
SDIO AP6212（option AP6181、AP6335） |
802.11n wireless, Bluetooth 4.1 |
| Video decoding |
1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 |
1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 |
1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder |
| Video input |
A CSI input connector Camera |
A CSI input connector Camera |
CSI camera connector |
| Video Outputs |
mini HDMI 1.4,1080P@30fps, DHCP |
mini HDMI 1.4,1080P@30fps, DHCP |
Mini HDMI and USB On-The-Go ports |
| Audio Output |
Mini HDMI |
Mini HDMI |
Mini HDMI |
| Power Source |
Micro USB with 5V/2A or PoE power |
Micro USB with 5V/2A |
5V/2A |
| USB 2.0 Ports |
one USB 2.0 OTG |
one USB 2.0 OTG |
one USB 2.0 OTG |
| Buttons |
Power Button, Reset Button |
Power Button, Reset Button |
Composite video and reset headers |
| Low-level peripherals |
40 Pins Header,compatible with Raspberry Pi 3 |
40 Pins Header,compatible with Raspberry Pi 3 |
40 PIN |
| uart GPIO(1x3) pin |
UART, ground |
UART, ground |
UART |
| LED |
Power led & Status led |
Power led & Status led |
Power Status LED |
| IR |
N/A |
N/A |
N/A |
| Supported OS |
android, linux |
android, linux |
Linux |
| Product size |
65mm X 52.5mm |
65mm × 30mm |
65mm x 30mm |
| Weight |
30g |
15g |
9g |
